VERTICAL LABYRINTH LINEAR WALK 01 · R4363
Decayed
height:1.49m
height:1.49m
Age of
use:4 - 12
use:4 - 12
Number of
users:24
users:24
Security
area:45,48 m2
area:45,48 m2
CERTIFICATES
DOWNLOADS

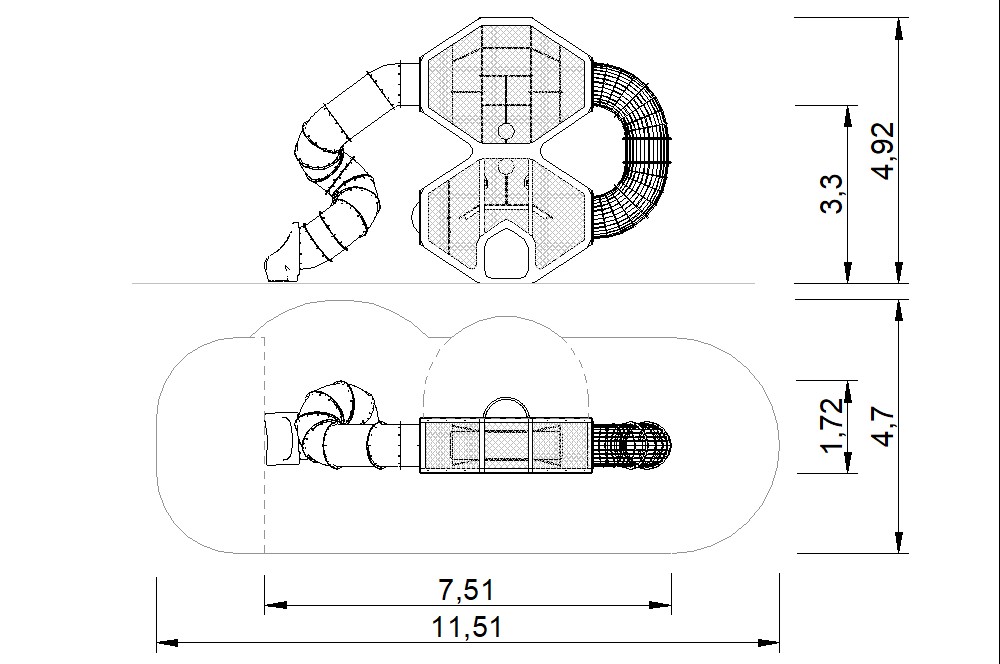

Singular playset ‘VERTICAL LABYRINTH LINEAR WALK 01’. Dimensions, 7.51×1.72×4.39(high) m. Impact area 43.89m².
4 staggered levels of play with different access elements connecting them:
• Vertical knots rope.
• Hanging platforms made of reinforced flexible rubber.
• Fireman’s pole.
• Hanging spheres ladder.
• Transparent polycarbonate weatherproof dome.
• Spiral tunnel slide made of rotomolded polyethylene.
• Stainless steel rods tunnel, making a 180º curved vertical access.
Materials
• 19 mm thick, maintenance-free, anti-graffiti, high-density polyethylene board decorations and side panels.
• Floors, platforms and inclined ramps made of 20 mm thick rubberized polyethylene boards.
• Ø16 polyamide ropes with steel core.
• Walls made with see-through galvanized wire security nets.
• Hot-dip galvanized steel structure.
• Stainless steel screws.
• Polyamide protective caps.
• Galvanized anchors.
• Floors, platforms and inclined ramps made of 20 mm thick rubberized polyethylene boards.
• Ø16 polyamide ropes with steel core.
• Walls made with see-through galvanized wire security nets.
• Hot-dip galvanized steel structure.
• Stainless steel screws.
• Polyamide protective caps.
• Galvanized anchors.
